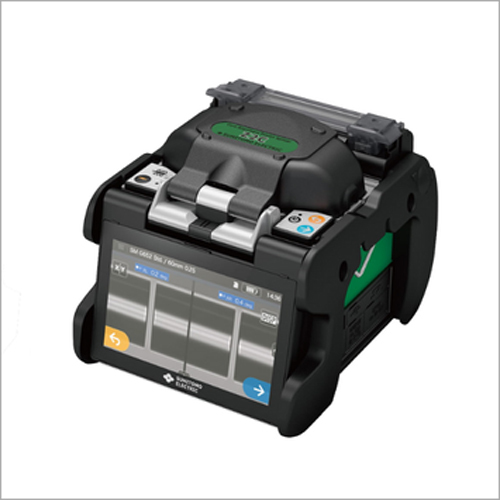

Sumitomo 82C Core Alignment Fusion Splicing Machine
242000 INR/Piece
Product Details:
- Product Type Other
- Technology Other
- Operating Type Semi Automatic
- Dimension (L*W*H) 128(W) x 154(D) x 130(H) mm (without anti-shock rubber) Millimeter (mm)
- Weight (kg) 1.9 kg (without Battery) / 2.2kg (with Battery BU-16) Kilograms (kg)
- Color Orange
- Warranty 1 year
- Click to View more
X
Sumitomo 82C Core Alignment Fusion Splicing Machine Price And Quantity
- 1 Piece
- 242000 INR/Piece
Sumitomo 82C Core Alignment Fusion Splicing Machine Product Specifications
- Other
- Other
- 128(W) x 154(D) x 130(H) mm (without anti-shock rubber) Millimeter (mm)
- 1 year
- Orange
- 1.9 kg (without Battery) / 2.2kg (with Battery BU-16) Kilograms (kg)
- Semi Automatic
- FTTx
Product Description
Sumitomo 82C Core Alignment Fusion Splicing Machine is fully automatic slicing equipment that uses a system of light sources, lenses, cameras, and motors which work together for accurately locating and aligning the fibre cores. It is housed in high quality material body, which ensures great resistance against shock, dust, & water, and study construction, and long life. Its battery has long working life for 300 splice and heat cycles. Featured with high resolution 5" LCD display and touch optimized user interface, Sumitomo 82C Core Alignment Fusion Splicing Machine can be bought at competitive prices.
Specification:
| Capacitive Touch Screen LCD Display | 5 Inch |
| Application | Sumi Cloud |
| Type | Fully-Automatic |
| Model No. | 82C |
| Splicing Time | 5 Second |
| Brand | Sumitomo |
| Electrode Life | 6000 Arc discharges |
| Heating Time | 9 Second |
| Weight | 1.9 kg (without Battery) / 2.2kg (with Battery BU-16) |
| Storage Condition | Temperature : -40 - +80 C. Humidity :0 - 95% (non-condensing), Battery: -20 - +30C (long term) |
| Splicing Loss SMF | 0.1 dB(Typical) |
| Splice Program | Max. 300,40 are pre-optimized, 226 editable by user |
| Operating Condition | Altitude : 0 - 6,000m, Temperature : -10 - +50 C, Humidity : 0 - 95% (non-condensing) |
| Heating Program | Max.100,27 are pre-optimized, 73 editable by user |
| Dimension | 128(W) x 154(D) x 130(H) mm (without anti-shock rubber) |
