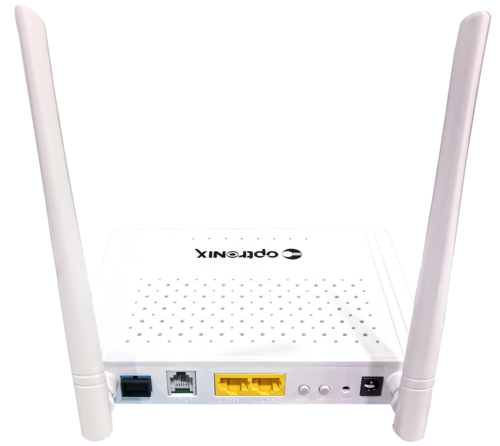

XPON 1GE 1FE 1POTS WIFI ONU Router
Product Details:
- Product Type WIFI ONU Router
- Application FTTH, FTTB
- Dimension (L*W*H) 180mm x 148mm x 31mm Millimeter (mm)
- Weight 0.24 Kilograms (kg)
- Click to View more
XPON 1GE 1FE 1POTS WIFI ONU Router Price And Quantity
- 2301 INR/Piece
- 1 Piece
XPON 1GE 1FE 1POTS WIFI ONU Router Product Specifications
- FTTH, FTTB
- WIFI ONU Router
- 180mm x 148mm x 31mm Millimeter (mm)
- 0.24 Kilograms (kg)
Product Description
XPON 1GE 1FE 1POTS WIFI ONU Router is OP821GWV terminal device engineered for meeting FTTH and triple play service requirement of fixed cable operators or network operators. It is completely based on the mature Gigabit GPON technology having high proportion of performance to price, and the technology of 802.11 n WIFI, Layer 2/3, as well as superior quality VOIP. Designed with guaranteed QoS for varied services, XPON 1GE 1FE 1POTS WIFI ONU Router is fully compliant with technical regulations, including ITU-T G.984.x as well as technical requirement of GPON Equipment.
Specification:
| Atmospheric pressure | 70-106 Kpa |
| Model Name/Number | OP821GWV |
| Usage/Application | FTTH, FTTB |
| Brand | Optronix |
| Wi-Fi enabled | yes |
| Bandwidth | upto 300 mbps |
| Wavelength | TX: 1310 +/-20nm, RX: 1490 +/-10nm |
| Typical power consumption | 7W |
| The length of the optical link | Max 20 Km |
| Power supply | 12V DC (By external AC/DC adapter) |
| PON quantity | 1 |
| PON interface transmitting rate | 2.488Gpbs |
| PON interface standard | ITU-T G.984.2/ITU-T G.984.3/ITU-TG.988 Class B+ |
| PON interface receiving rate | 1.244Gpbs |
| Output optical power | Min: 0dBm, Max: +5dBm |
| Optical receiver sensitivity | Precede -28 dBm |
| Net Weight | 0.24 Kg |
| MTTR | 30 minutes |
| MTBF | 50,000 hours |
| Installation style | Support PC, wall mount or put inside of information box |
| Fiber style | Single mode |
| Environment Temperature | 0-45 C |
| Dimension | 180mm x 148mm x 31mm (L x W x H) |
| Cooling style | Naturally cooling |
| Connector style | SC/PC |
| Chipset | MTK |
